The ChargerLAB POWER-Z KM003C tester has gained another compatibility enhancement. The latest firmware now supports the WCH CH253 chip, allowing cables equipped with this IC to be quickly identified through the device's E-Marker reading function, with chip-related information displayed clearly and intuitively.
Also Read: Twenty Five PD3.1 Protocol Chips and Their Manufacturers: A ChargerLAB Analysis

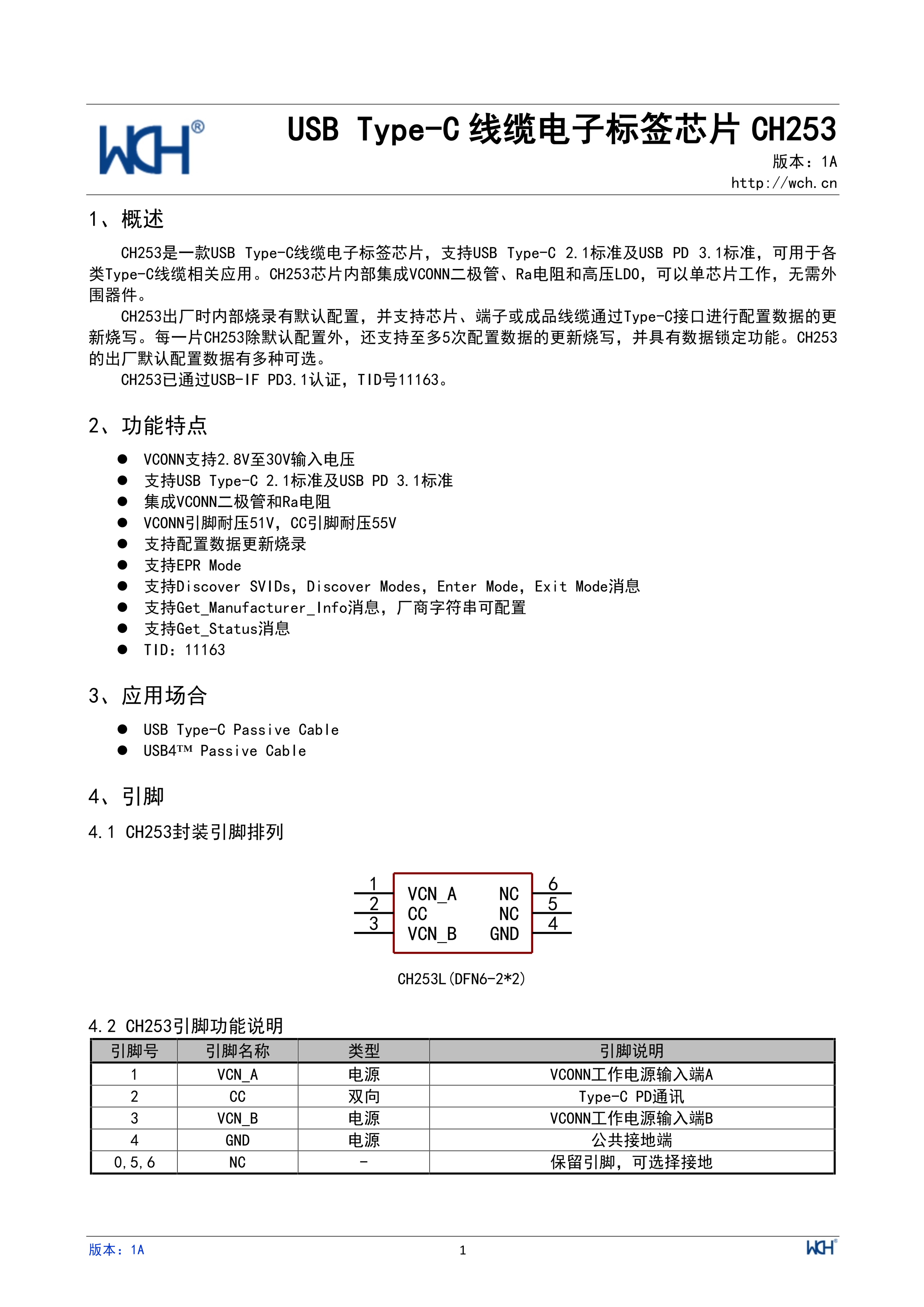

The CH253 chip has passed USB-IF PD3.1 certification (TID 11163). It integrates a VCONN diode, Ra resistor, and high-voltage LDO internally, eliminating the need for external components and making it suitable for a wide range of USB Type-C cable applications.
After upgrading the POWER-Z KM003C to the latest firmware version, users can test and read CH253 chip information directly through the device.
Also Read: E-Marker Test for High-End Thunderbolt 4 and Magsafe 3 Cables | The New Update of POWER-Z KM003C
With the recently released V2.0.0 firmware, the POWER-Z KM003C introduces industry-first support for cable IC identification on top of its existing E-Marker reading capabilities. Without any destructive operations such as cutting or stripping cables, users can accurately identify the built-in IC solution with a single click, clearly view key chip information, and efficiently perform cable quality inspection and solution verification.
