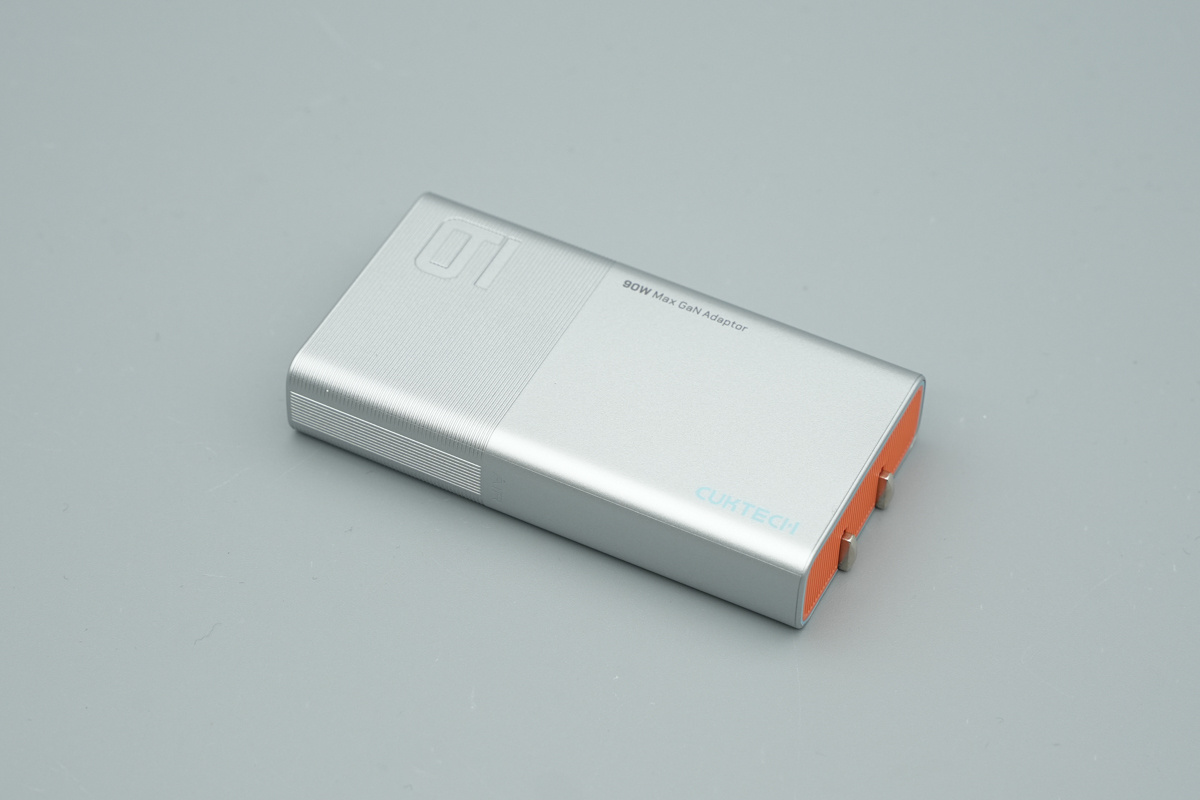

The POWER-Z KM003C protocol detection function is now compatible with the CUKTECH 90W Max GaN Adaptor, allowing it to accurately identify the fast-charging protocols supported by the charger. In actual testing, protocol detection was stable and the reported data was complete and reliable.

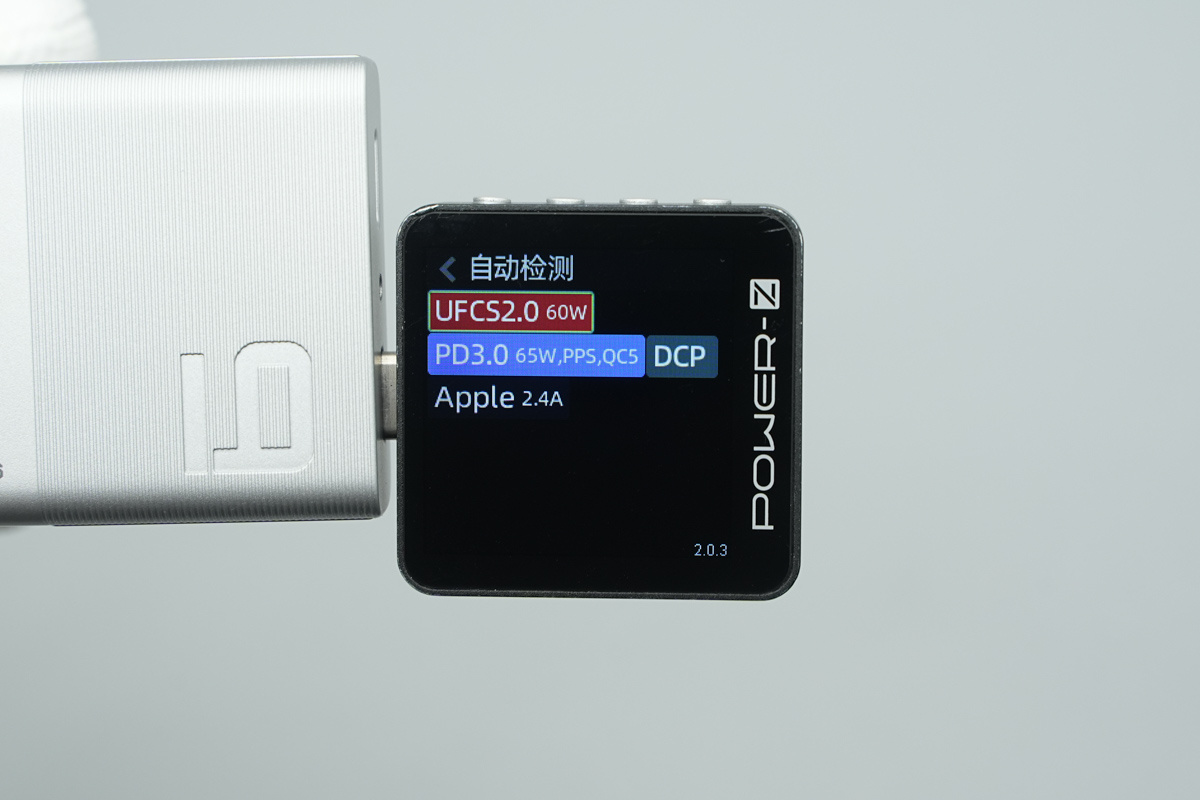

In AUTO mode, the POWER-Z KM003C shows that the USB-C1 port supports UFCS 2.0, PD3.0/PPS, QC5, DCP, and Apple 2.4A fast-charging protocols.

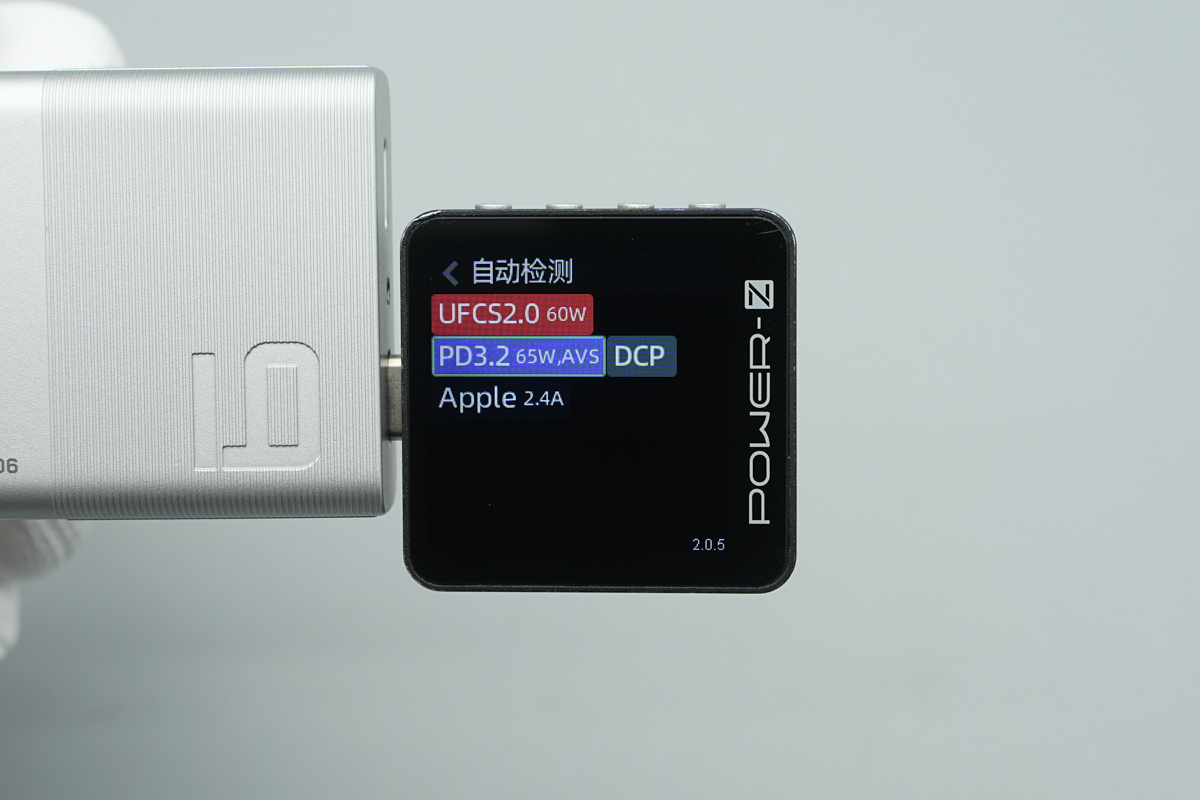

In PD3.0 mode, the USB-C1 port supports UFCS 2.0, PD3.2/AVS, DCP, and Apple 2.4A fast-charging protocols.

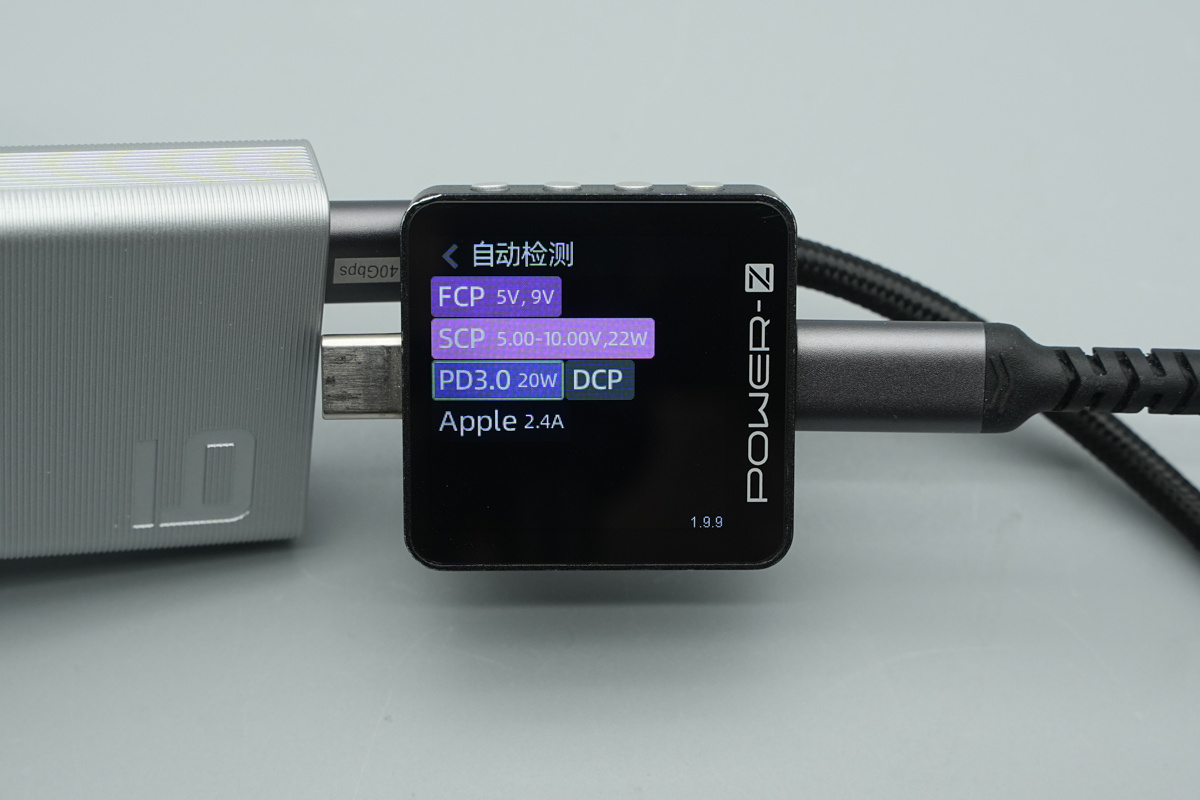

And the USB-C2 port supports FCP, SCP, PD3.0, DCP, and Apple 2.4A fast-charging protocols.

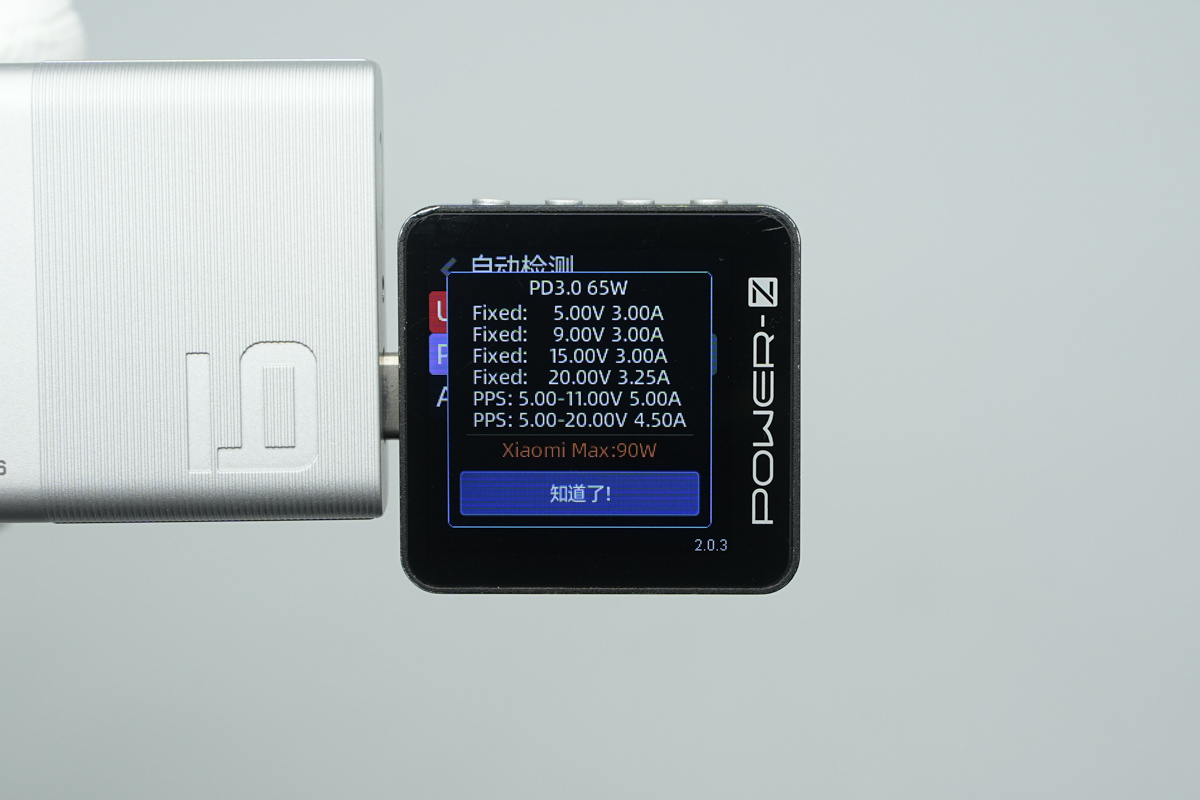

In AUTO mode, the PDO readout for the USB-C1 port shows four fixed voltage levels: 5V3A, 9V3A, 15V3A, and 20V3.25A. It also supports PPS at 5-11V5A and 5-20V4.5A, as well as Xiaomi 90W HyperCharge.

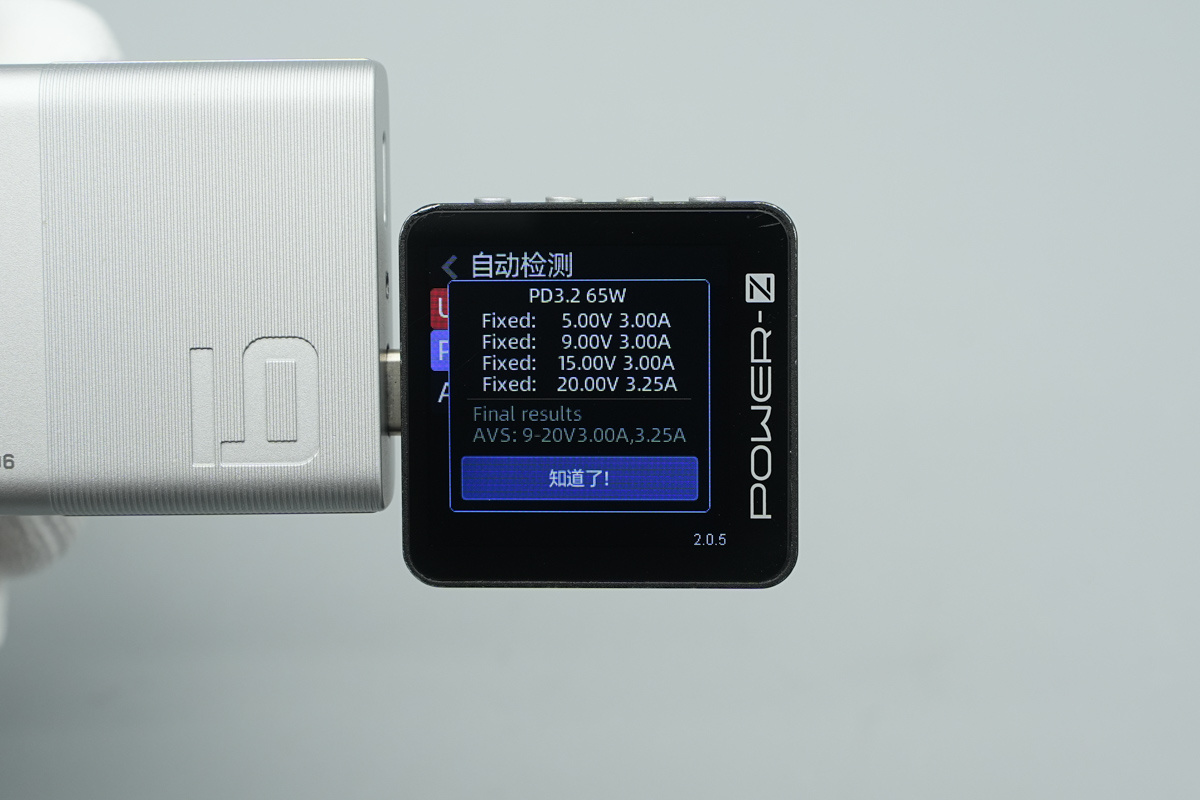

In PD3.0 mode, the PDO result remain the same: 5V3A, 9V3A, 15V3A, and 20V3.25A, along with an additional AVS of 9-20V at 3A/3.25A.

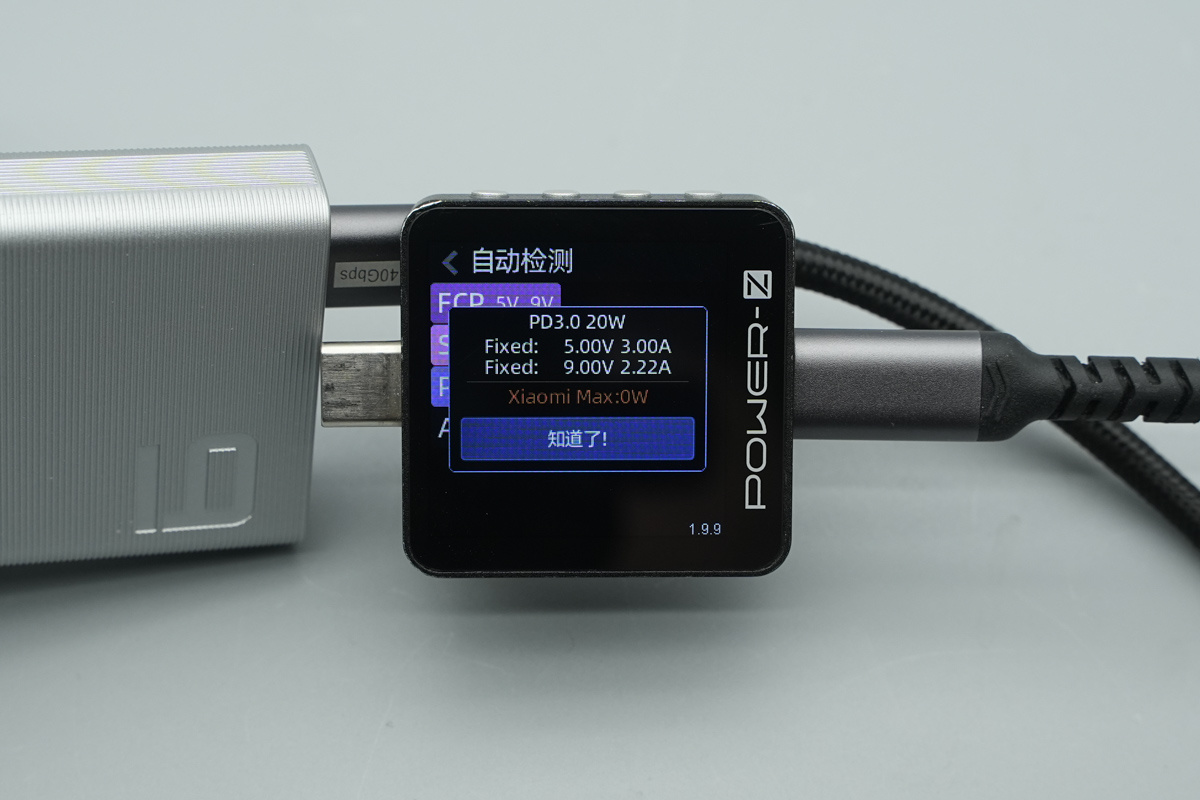

As for the USB-C2 port, the PDO readout shows support for 5V3A and 9V2.22A.
As a professional multi-protocol fast-charging tester, the POWER-Z KM003C supports the vast majority of fast-charging protocols on the market. It offers a comprehensive feature set, simple operation, and is easy to use even for first-time
