ChargerLAB POWER-Z KM003C

Power-Z KM003C Portable USB-C Fast Charging Tester PD3.1 QC5.0 Digital Voltmeter & Ammeter Power Bank Tester

【PD3.1】This is the POWER-Z official product page. This tester is the latest version and can support PD3.1.

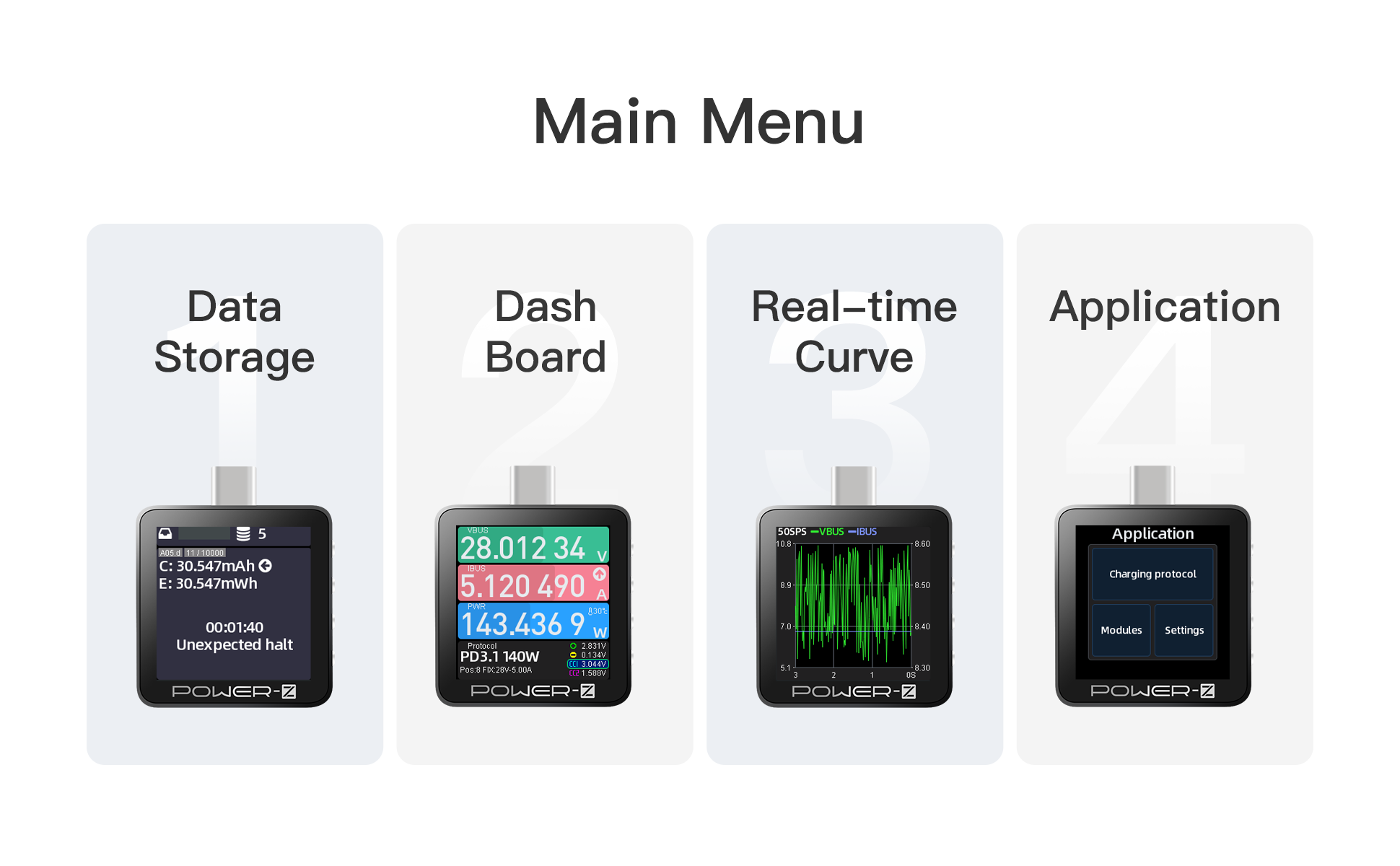

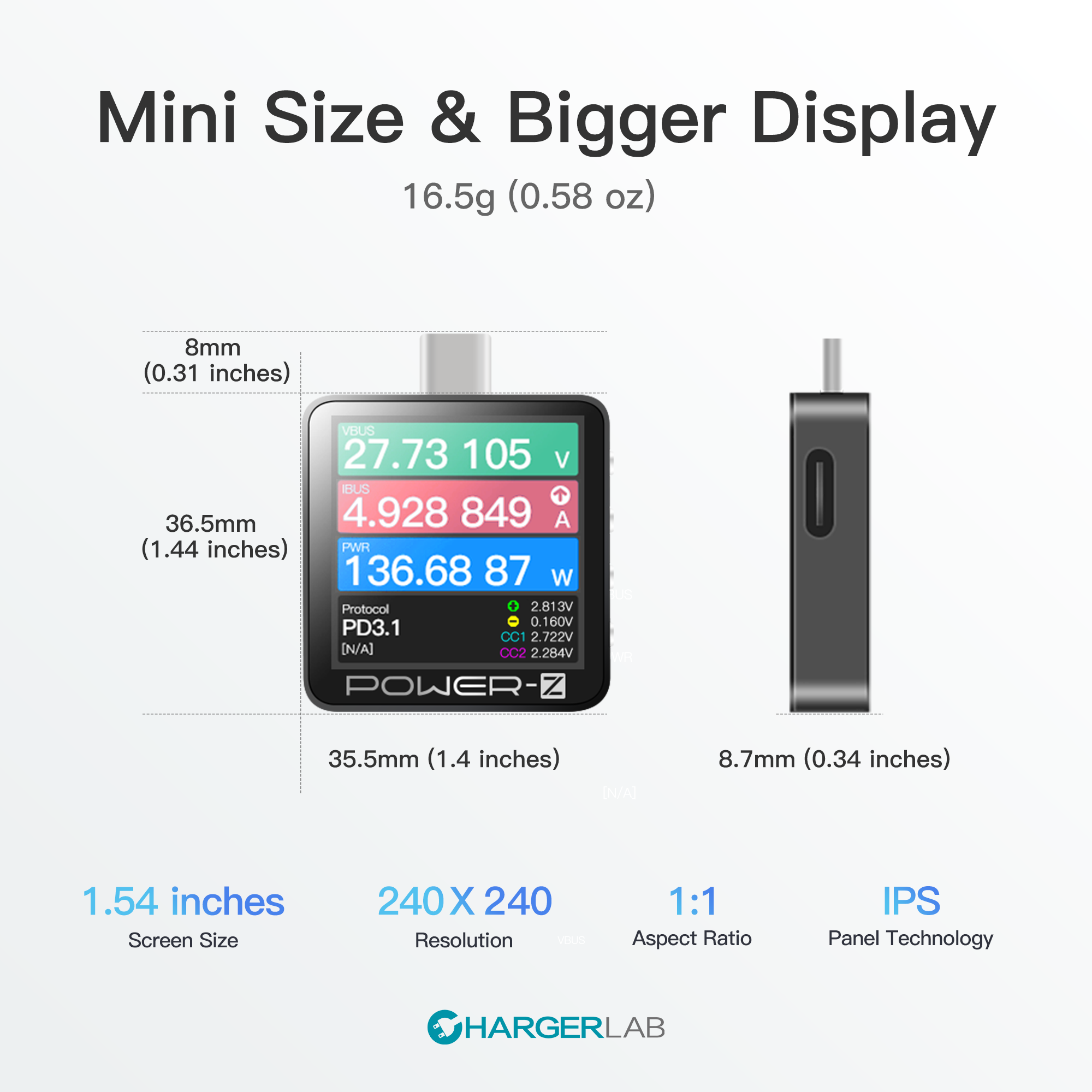

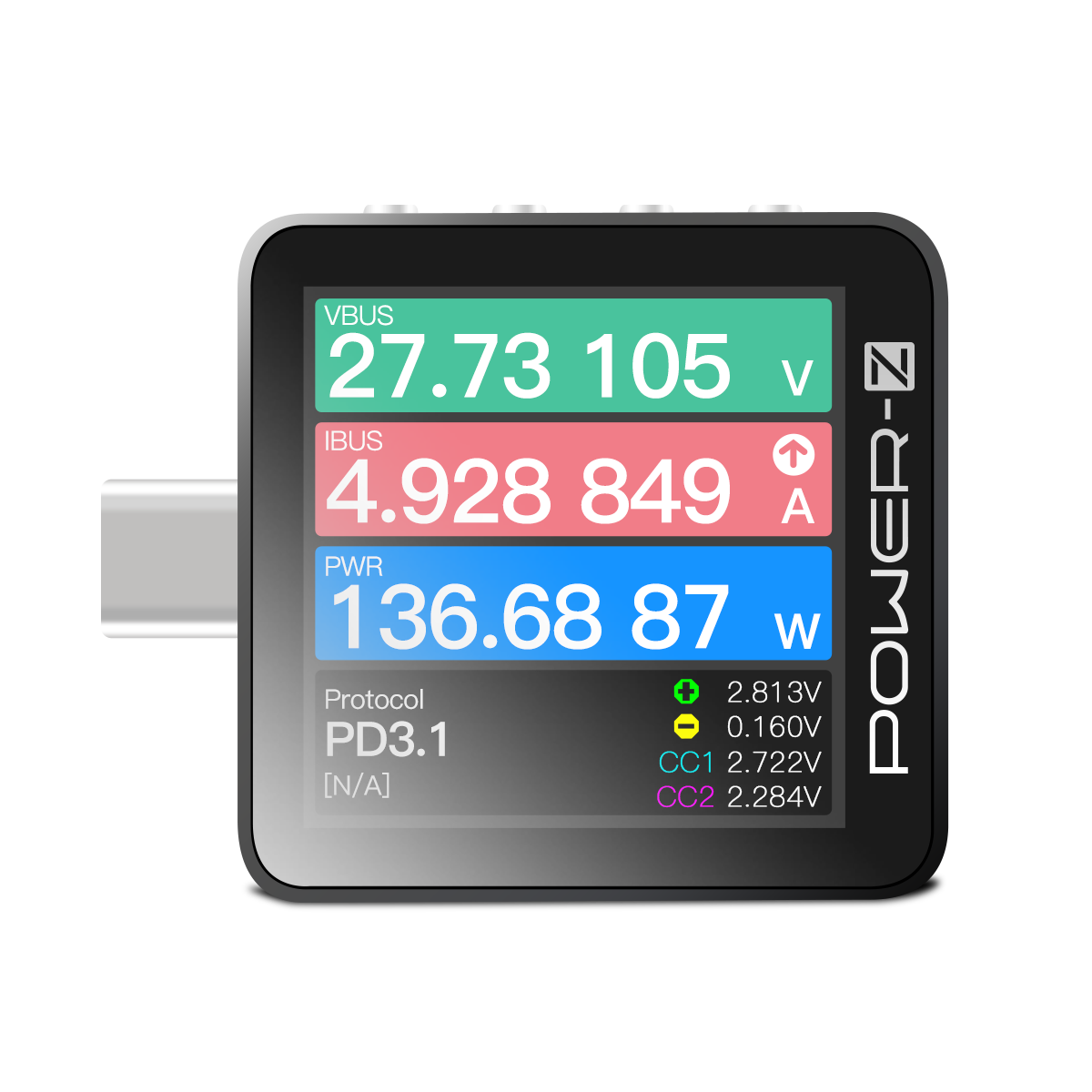

【Larger Display】It has a larger LCD display (1.54 inches) than previous generaion and can support gravity rotation. The high contrast UI makes it easier to get what you need.

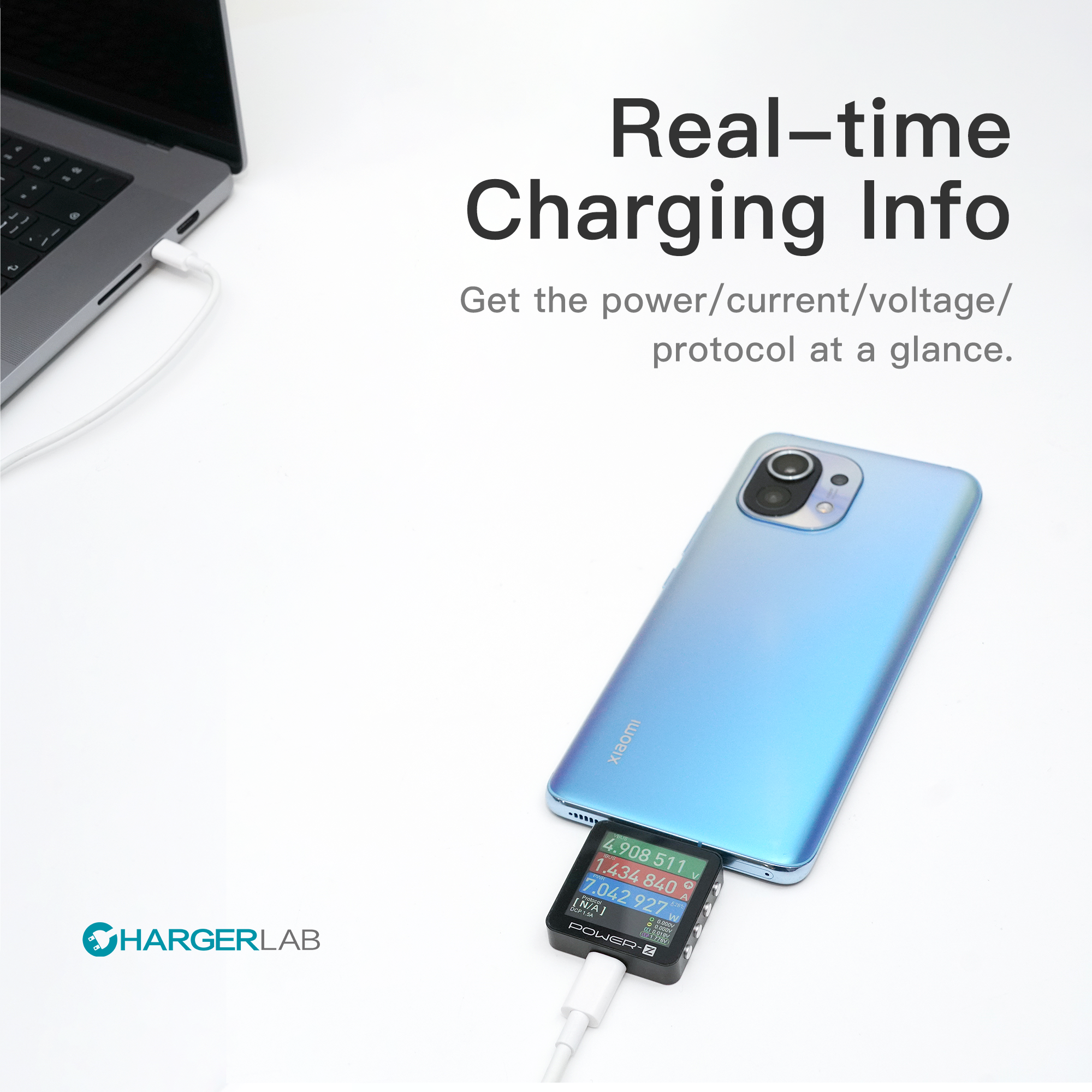

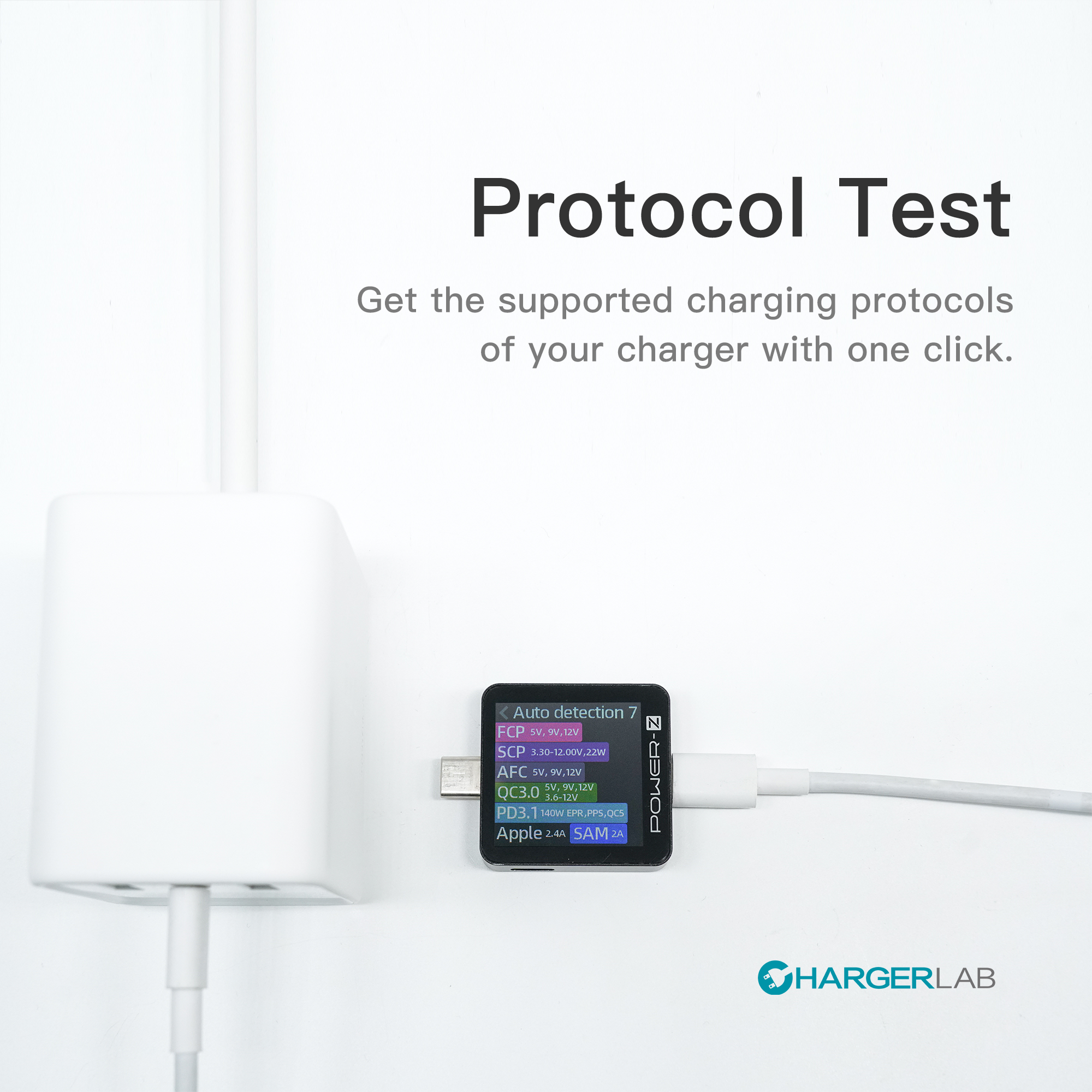

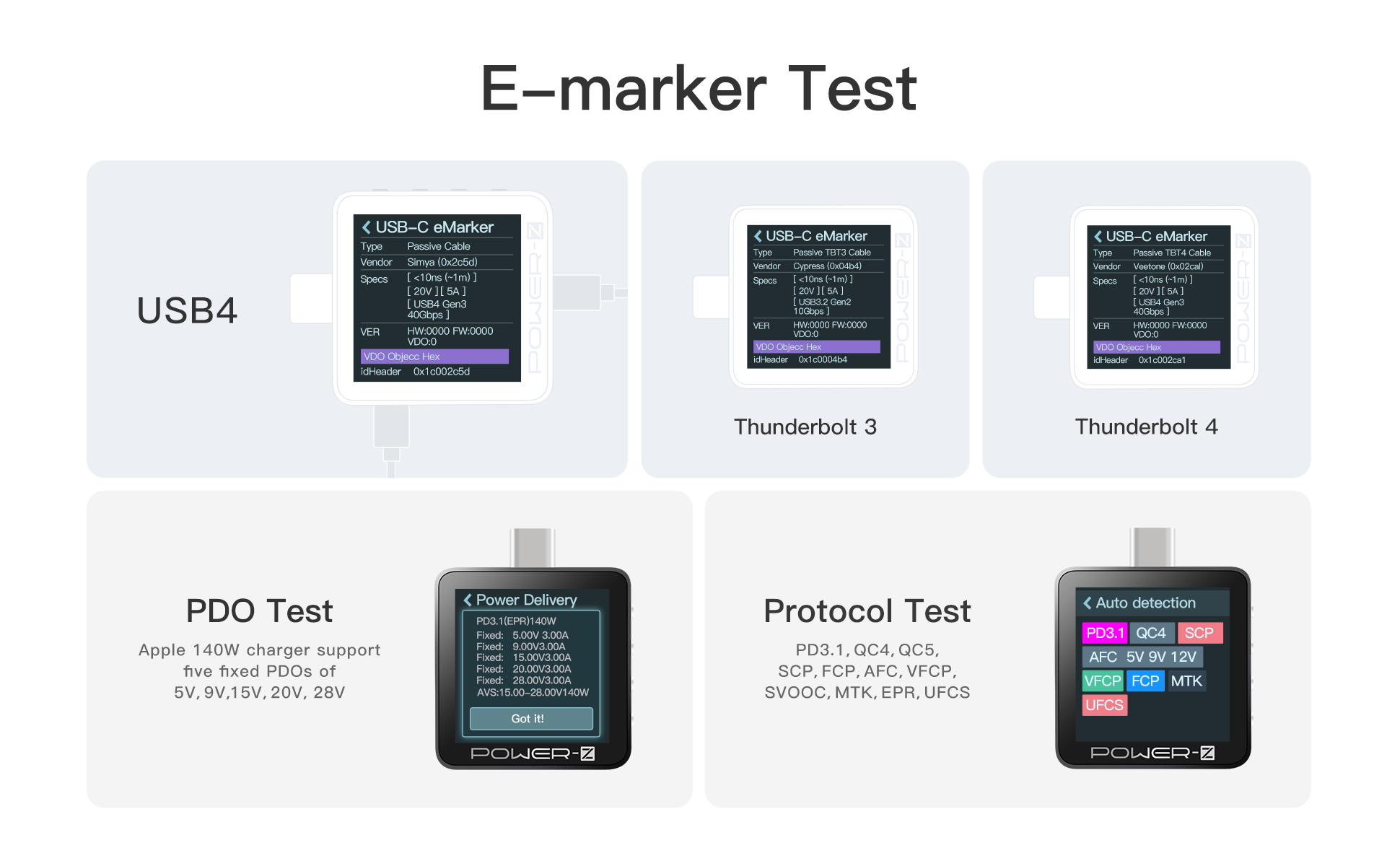

【Multiple Tests】This tester can support multiple tests, including voltage/current detection, capacity/energy test, E-marker test, PDO test, protocol test, etc.

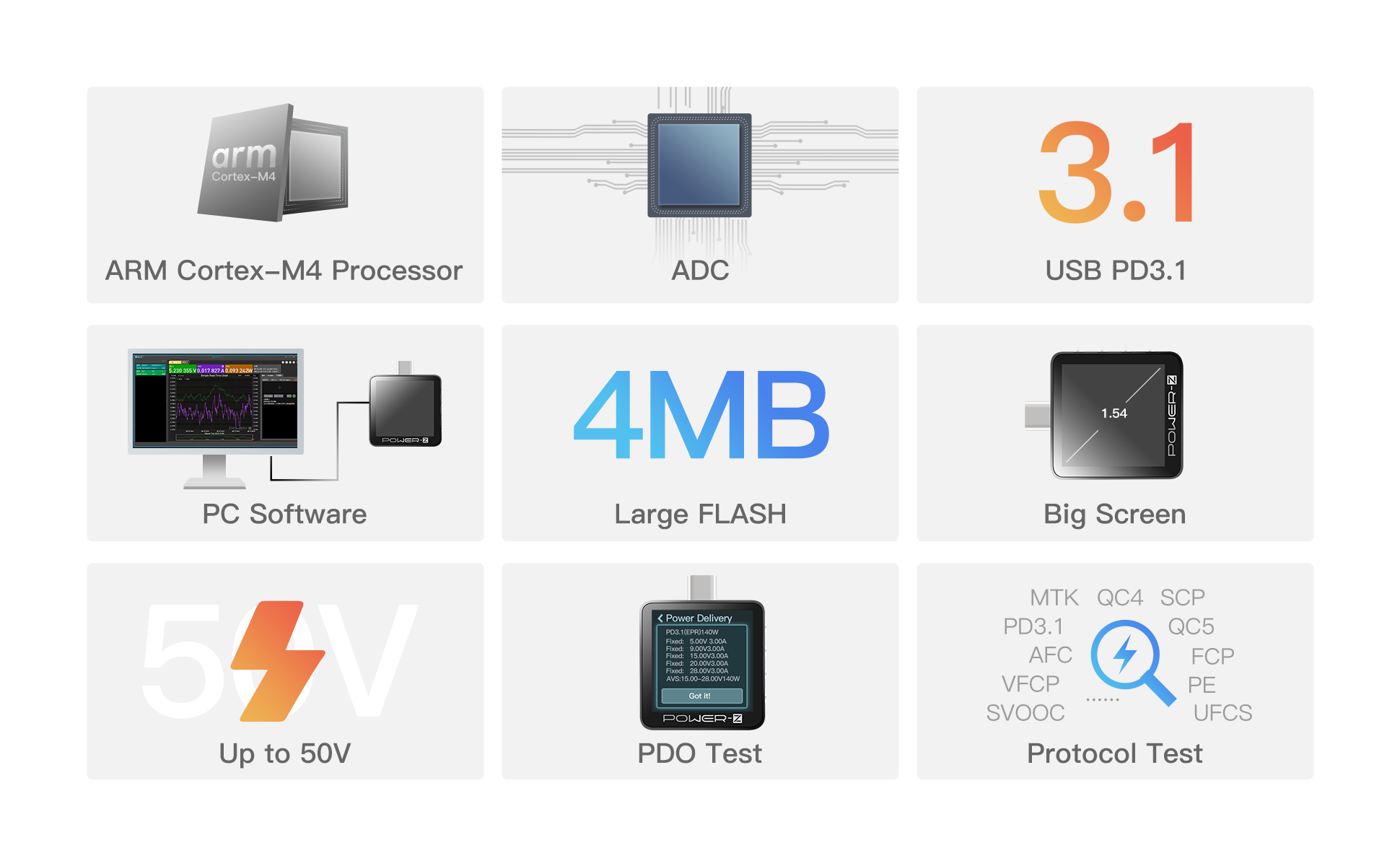

【More Powerful】This tester integrates ARM Cortex-M4 processor and 20 bit ADC. It can support up to 50V 6A (240W in PD) and USB PD protocol analyzer. The PC software can obtain 10 million pieces of data at a time.

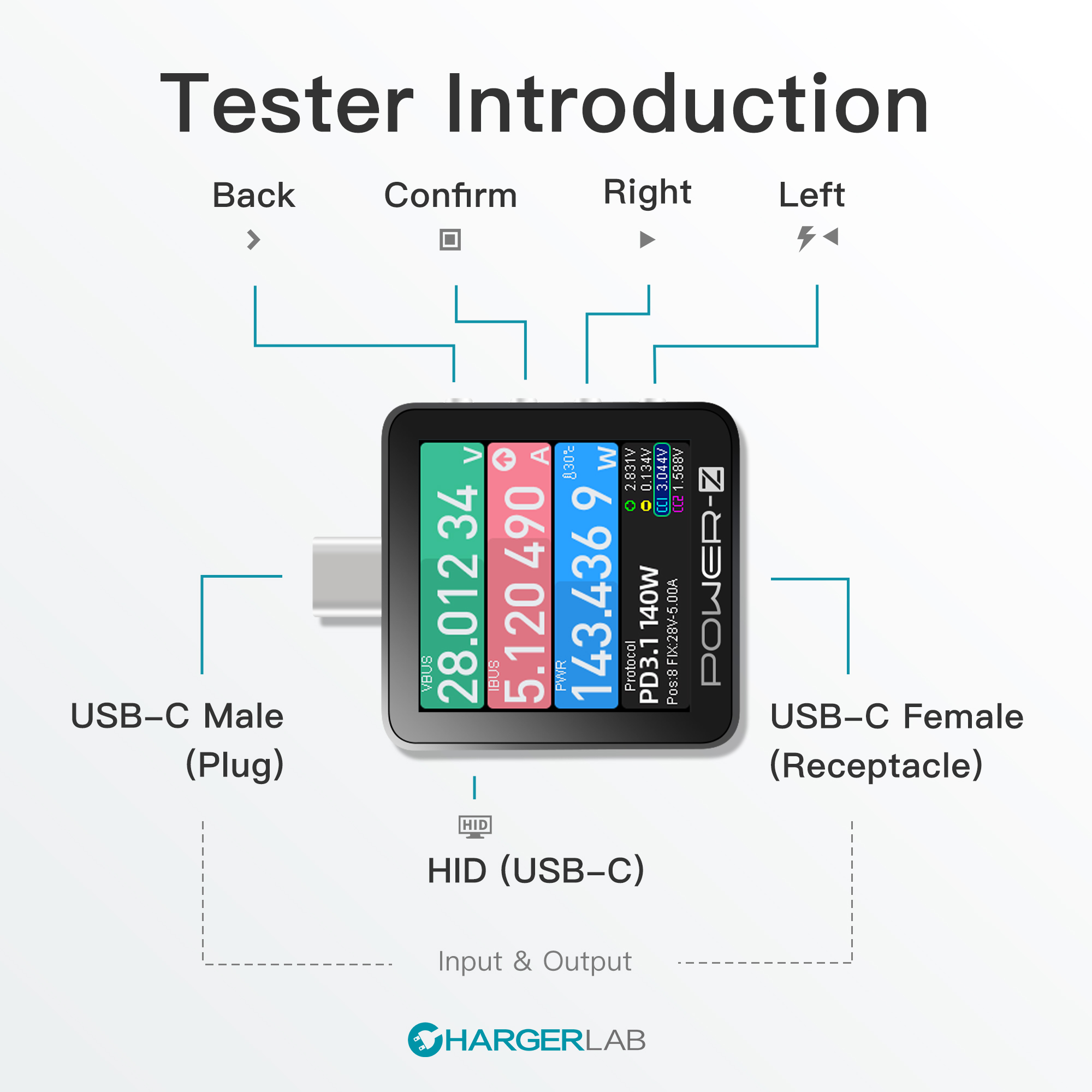

【Designed for USB-C】It's equipped with two USB-C ports for current input & output and an additional HID port (USB-C) for connecting to PC & power supply.

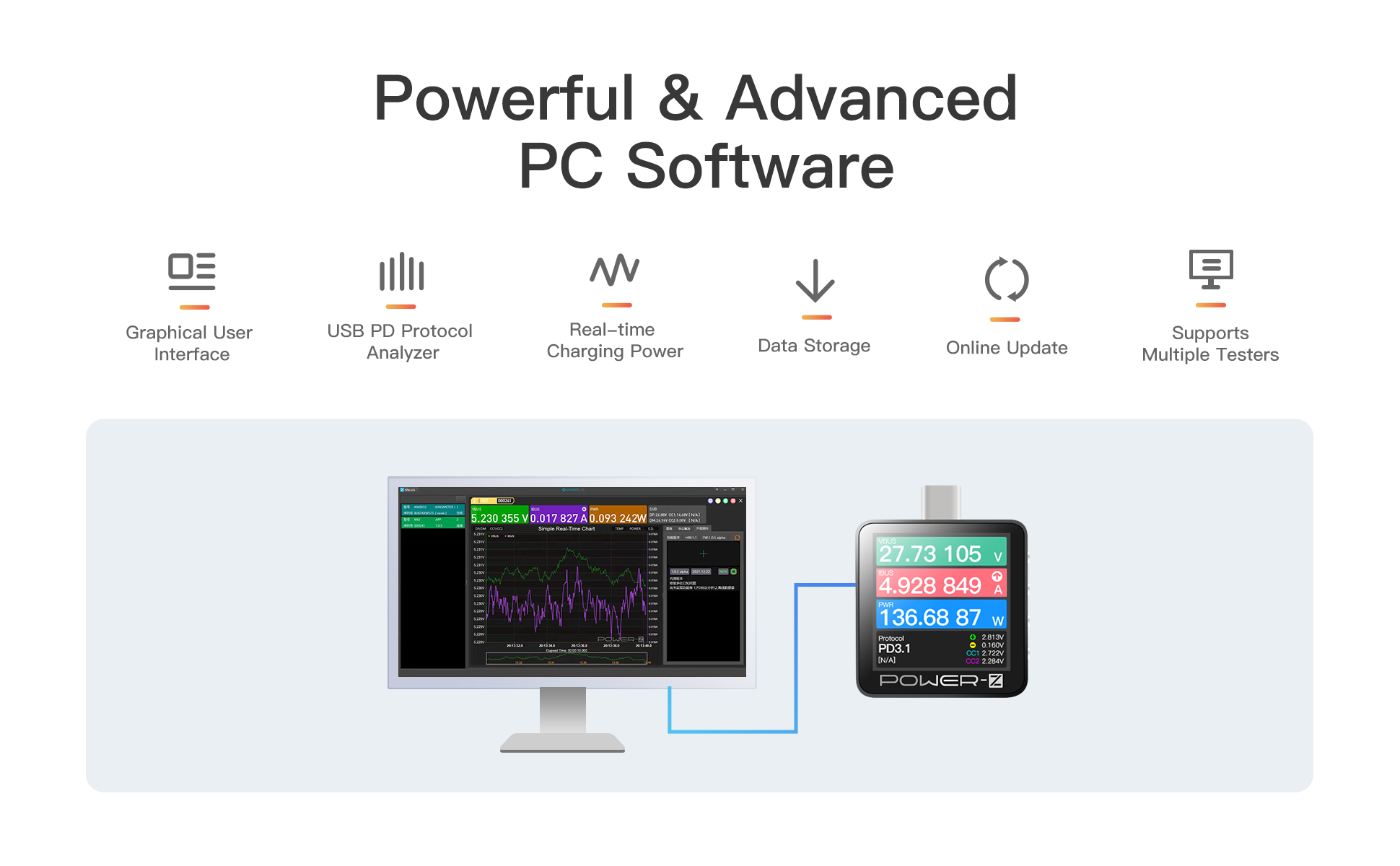

【Tech Support】This model can support English and Chinese. Please go to our official website to get the manual and PC software (For update and further analysis).

$ 109.99

Buy Now

109.99

Buy Now

Product Description

ChargerLAB POWER-Z KM003C-POWER-Z

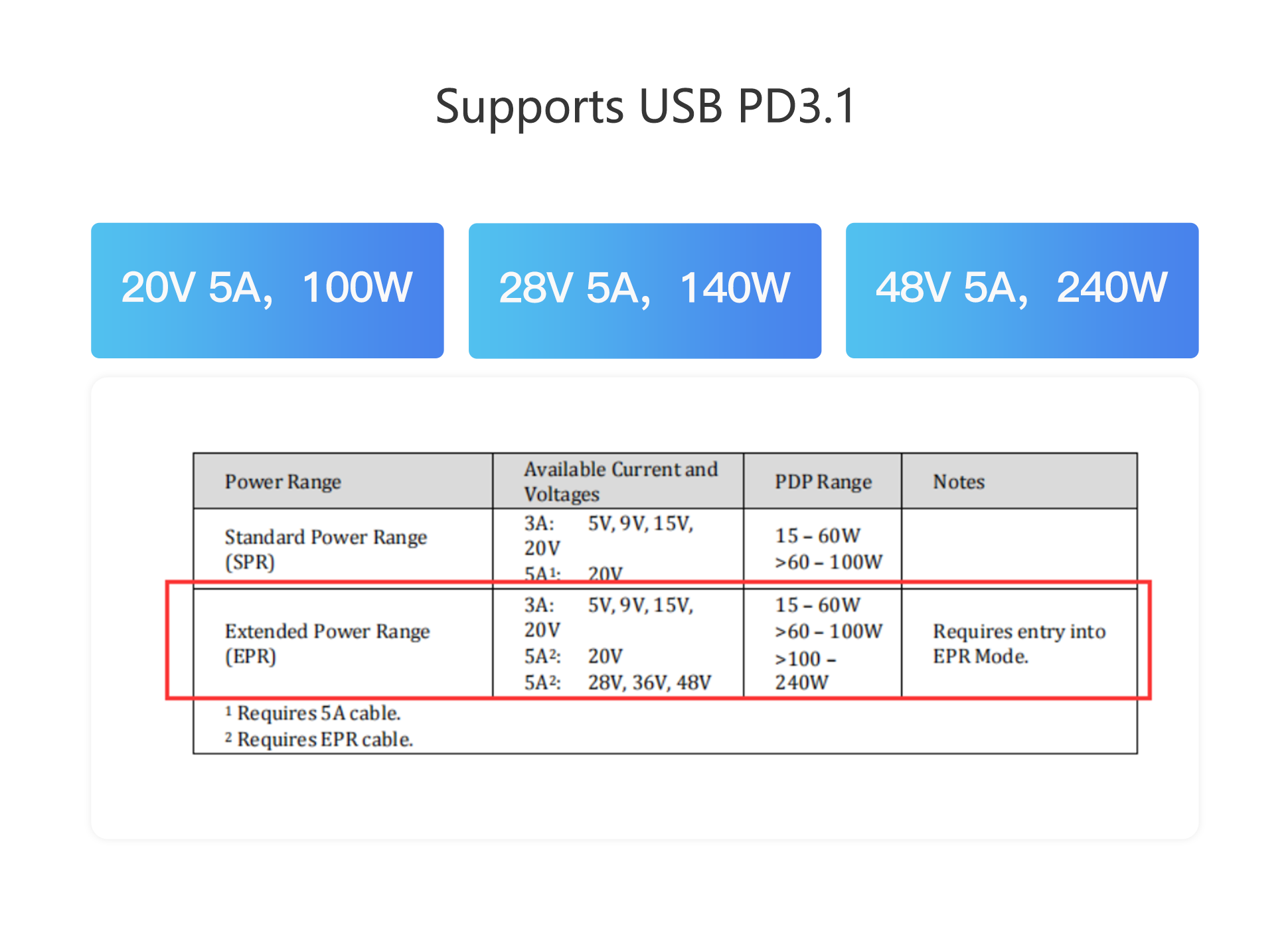

As the upgraded version of USB PD3.0 protocol, the new USB PD3.1 protocol can support up to 48V, And the charging power can reach 240W. According to the documents from USB-IF, the USB PD3.1 can support extended power range (EPR) of 28V, 36V, 48V and three sets of adjustable voltage supply (AVS).
